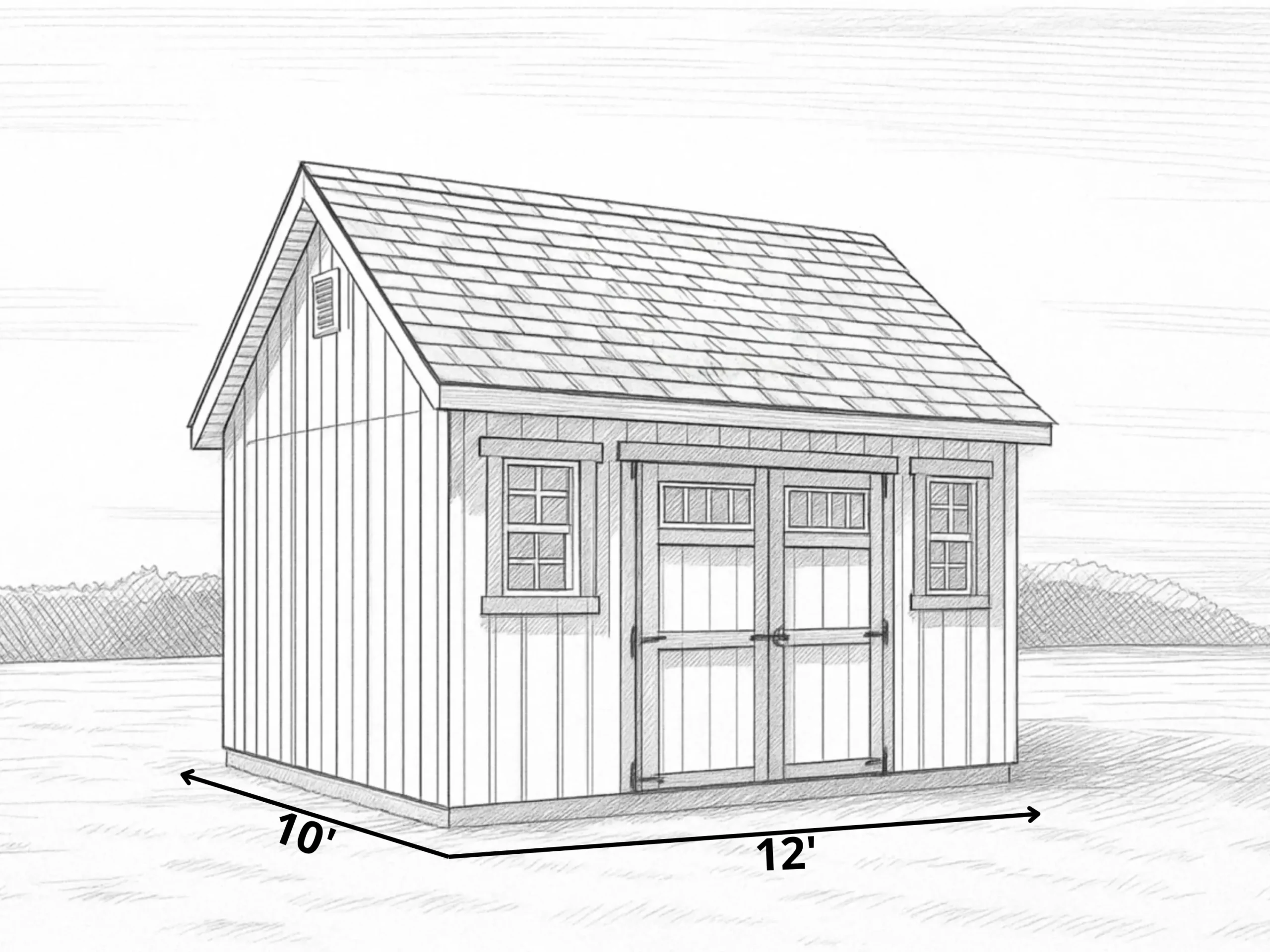

10x12 Colonial Shed Plans

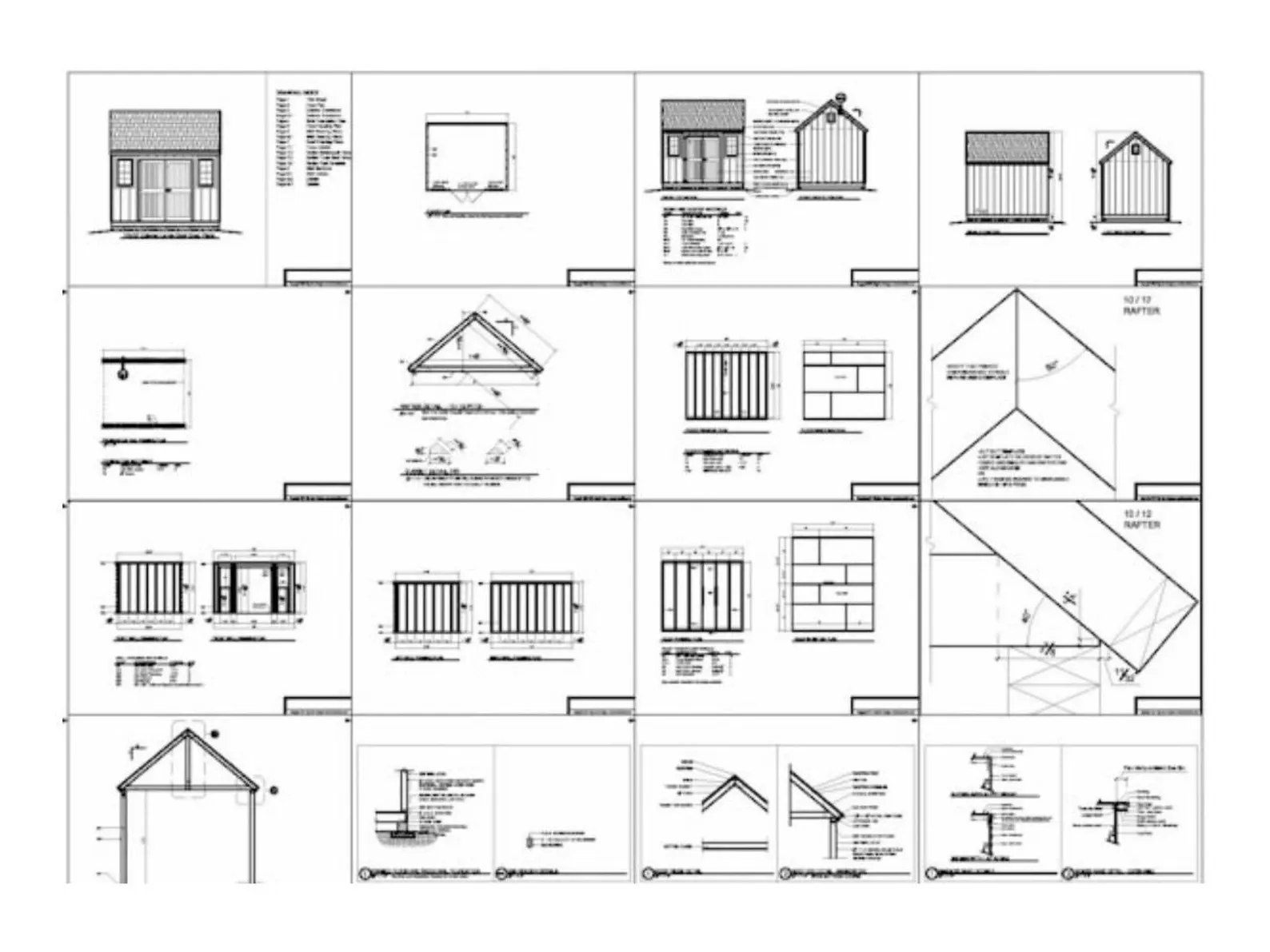

10×12 Colonial Shed Plans Include The Following

Materials List: Use the included materials list to get pricing and to simplify the ordering of materials.

5 Foundations = 5 different foundations are included in the plans; Wood skid, Concrete slab, Concrete Pier, Concrete Block and Precast pier.

Floor = 2×8 floor joists at 16″ on center with 3/4″ floor sheathing.

Walls = 2×4 framing at 16″ on center with a double top plate, just like a home is framed. The shed wall height is 7′-7″.

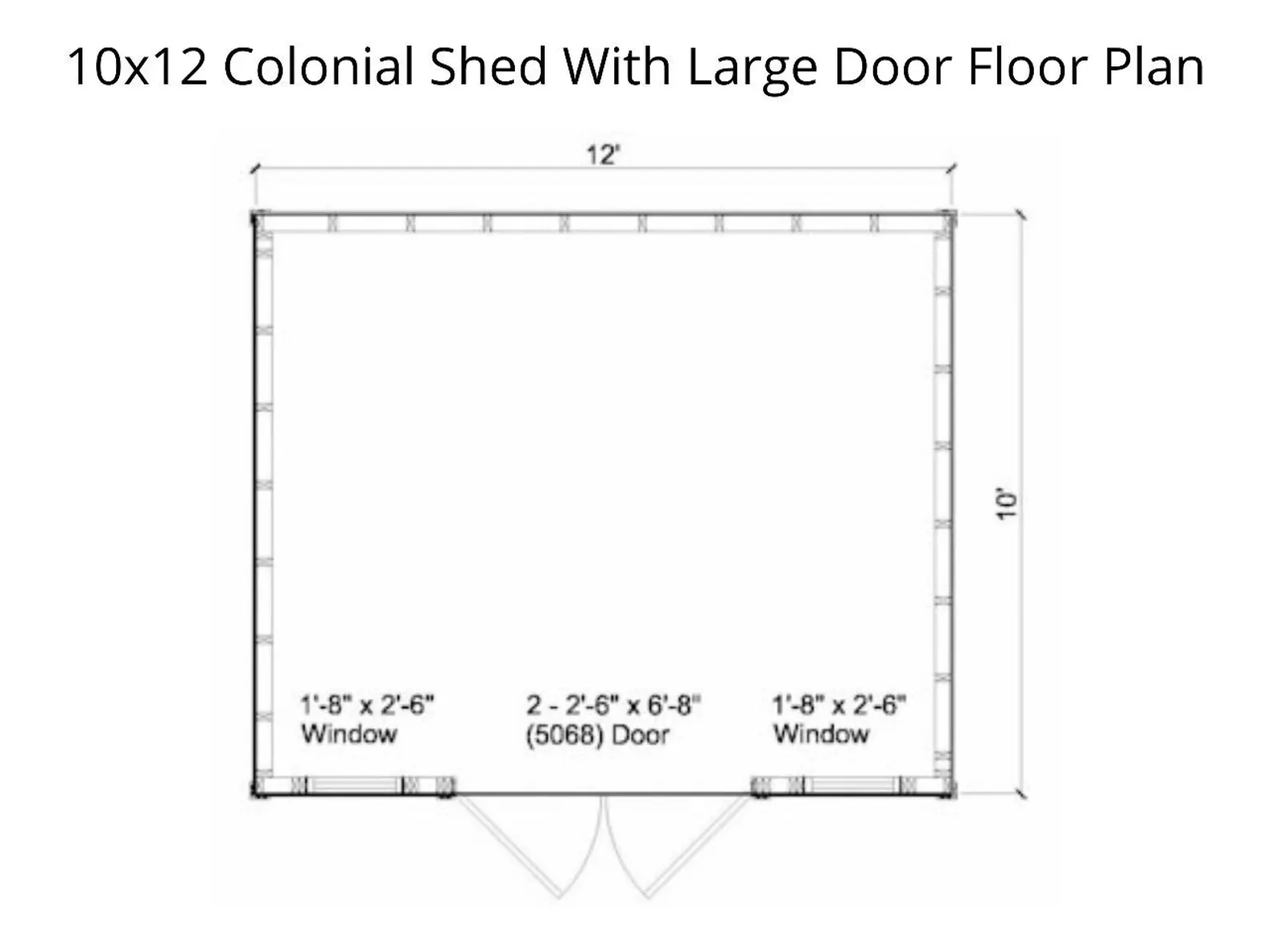

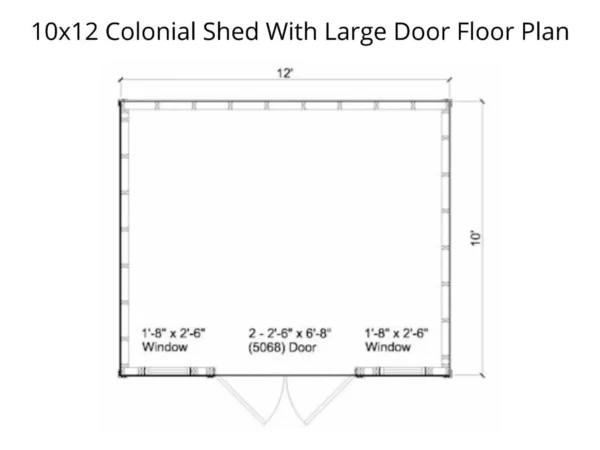

Door = The storage shed plans are designed to have double doors measuring 5′-0″ x 6′-8″. Purchase and install factory built pre-hung doors or build the doors using the included shed door plans.

Roof = The roof is framed using 2×4’s to build rafter trusses. It is sheeted with 1/2″ O.S.B.

Roofing = 25 year asphalt shingles.

Siding = The siding is exterior grade rough sawn plywood faced with 1 1/2″ x 1/2″ battens. This can be changed to use any siding you like.

Trim = 1×3 and 1×6 wood, Masonite or cement trim materials are used to finish the corners, roof eves and facia, and door.
