12×14 Dormer Shed Plans PDF
What Makes These Plans Stand Out:
Multiple Foundation Options for Any Site
Choose the foundation that best fits your needs with five included options: 6×6 wood skid, concrete slab, concrete block pier, poured concrete pier, and precast pier.
Professional-Grade Framing and Durability
Built just like a real home, the walls are framed with 2×4 studs at 16″ on center and a double top plate for maximum strength. The 92 5/8″ framing studs create walls that stand at 8′-1″ high, giving your shed a spacious, open feel.

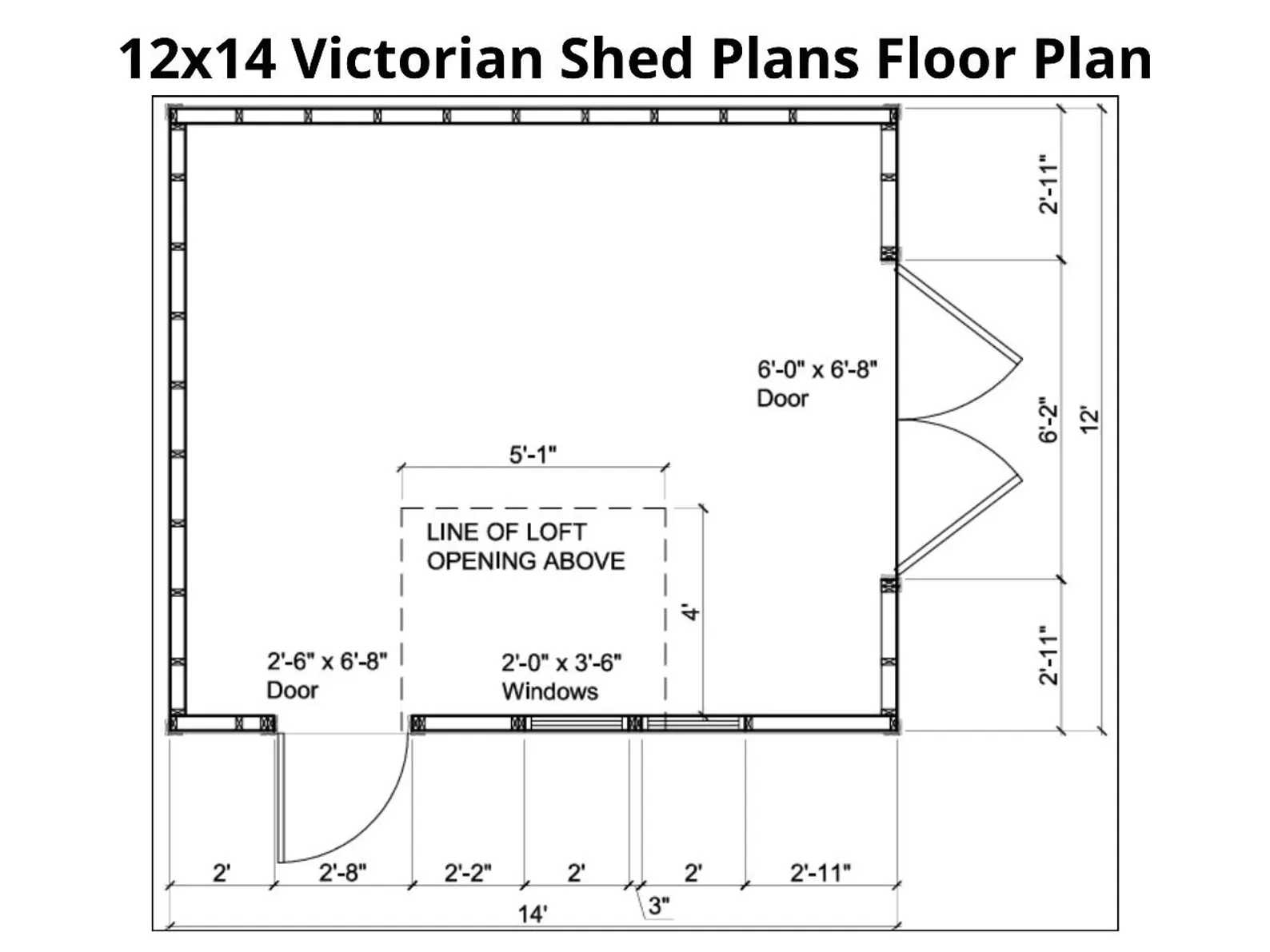

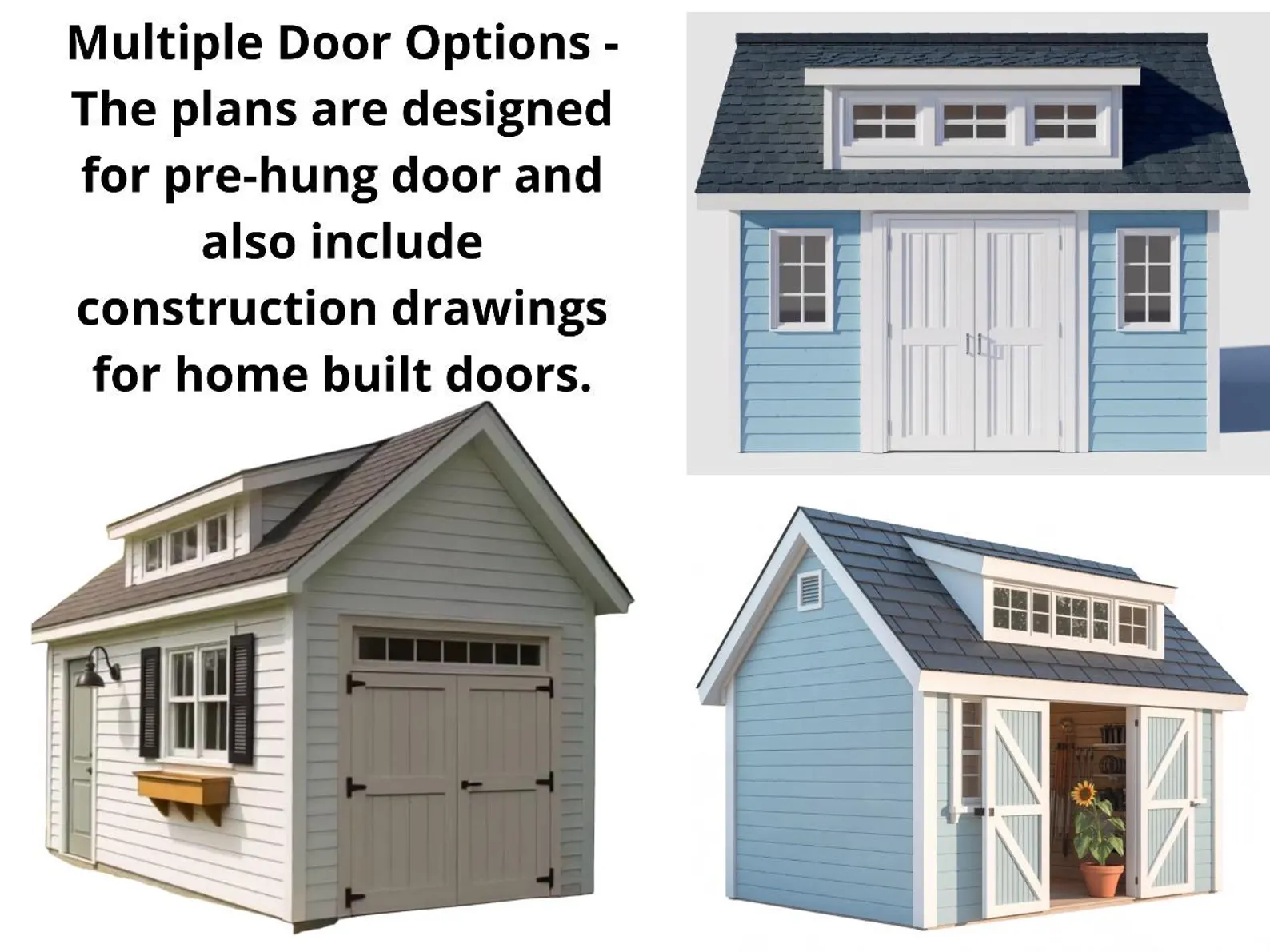

Flexible Access with Home-Built Doors
This plan features two door options for easy entry and larger equipment storage:
• ✔ Double End Door: 6′-0″ wide x 6′-8″ tall
• ✔ Side Door: 2′-6″ wide x 6′-8″ tall
Versatile Exterior Finishes
Designed with T-111 exterior siding in mind, but easily adaptable to vinyl or other siding options if you prefer.
Strong Roof Structure with Classic Aesthetic
The roof uses 2×6 rafters with a ridge board, sheeted with 1/2″ OSB. Detailed rafter dimensions and cut angles are provided, allowing you to pre-assemble the rafters on the ground for easy installation.
• ✔ Main Roof Pitch: 10/12 (10 inches of rise for every 12 inches of run)
• ✔ Dormer Roof Pitch: 4/12
Smart Finishing Touches
• ✔ Roof Overhangs: 10″ on both sides and gable ends for better weather protection
• ✔ Trim Materials: 1×4 and 1×6 wood, Masonite, or cement board to finish corners, eaves, fascia, and doors.
Engineered for Real-World Loads
• ✔ Floor Load Capacity: 50 pounds per square foot—no “spongy” floors here!
• ✔ Roof Snow Load: 40 pounds per square foot—perfect for most climates. If you’re in a high-snow area, contact us for stronger framing recommendations.
Your Plans Include:
• ✔ Full, Detailed Materials List (organized by parts of the shed)
• ✔ Instructions for All Five Foundation Types
• ✔ 2×6 Floor Joists & 3/4″ Sheathing Layout
• ✔ 2×4 Wall Framing at 16″ On Center with Double Top Plate
• ✔ Construction Guides for Double End Door and Side Door
• ✔ Exterior Siding and Optional Siding Instructions
• ✔ Roof Rafters and Ridge Board Construction with Pre-Cut Angles
• ✔ Roof Pitch and Overhang Specifications
• ✔ Trim Installation Details
• ✔ Floor and Roof Load Ratings

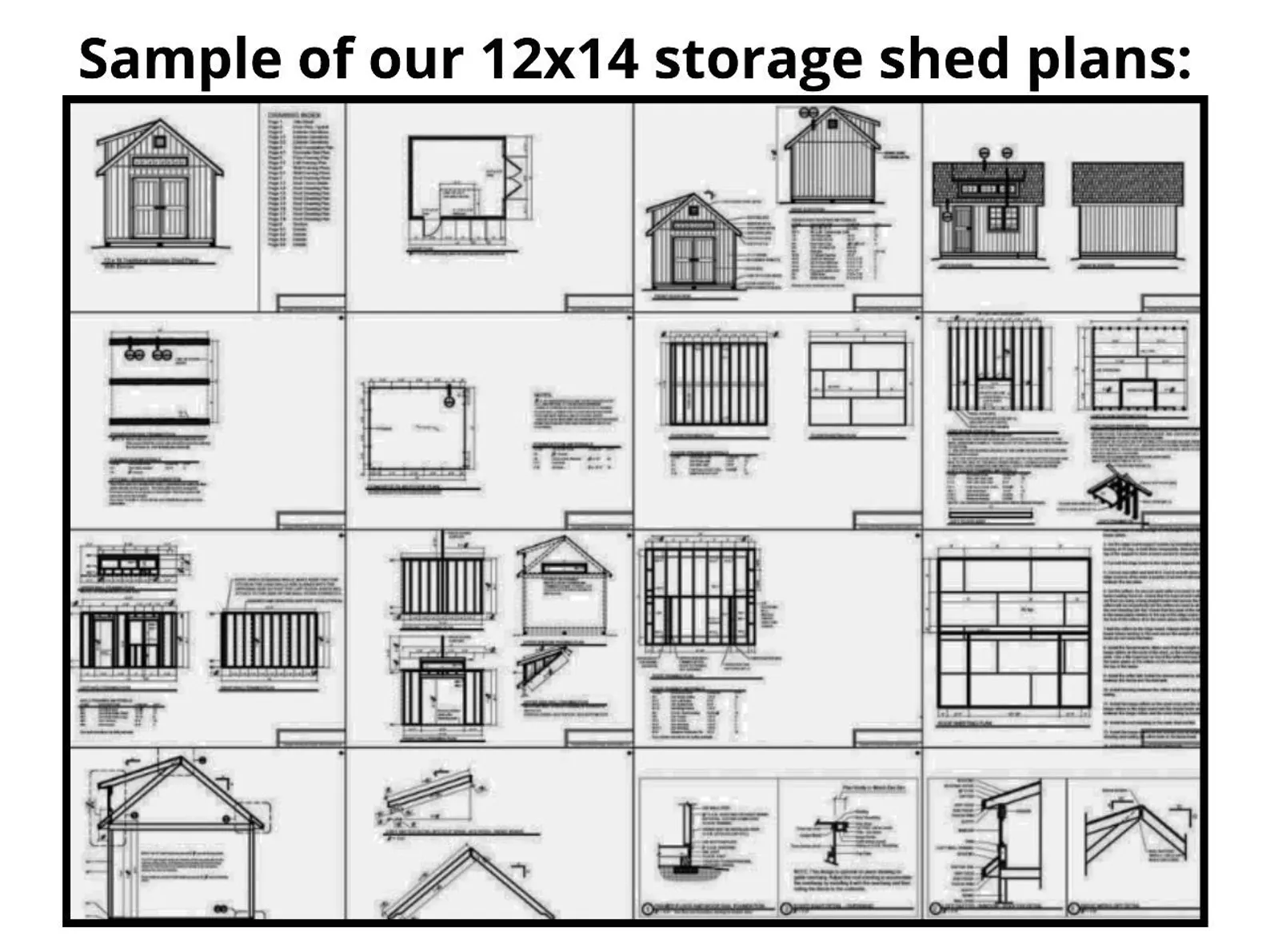

• ✔ Clear, Easy-to-Follow Illustrated Instructions
Built by You. Designed by Us.
Our plans are original creations—crafted to give you the pride of building something real, lasting, and completely your own.
