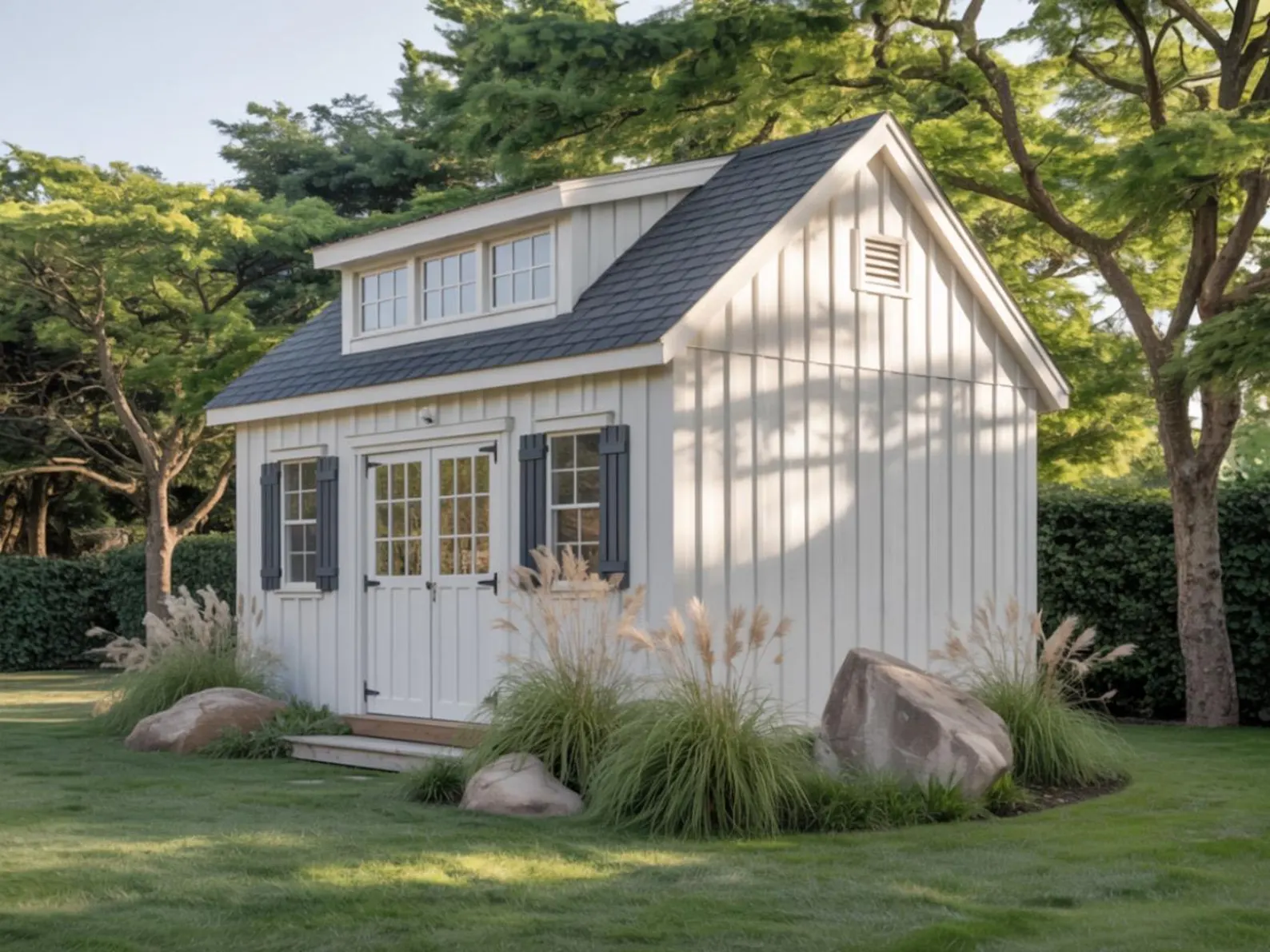

12x16 Garden Shed Plans with Loft (PDF) – DIY Workshop & Storage Shed with Double Doors, Windows and 2 Door Options
Original price was: $53.00.$26.50Current price is: $26.50.
What’s Included:
- Full materials list
- Step-by-step illustrated instructions
- Guides for doors, framing, roofing & siding
- Load specs & trim details
What's New in Our Shed Plans?
12×16 Dormer Shed Plans (PDF Download)
Build a strong, stylish shed with professional-grade plans!
What Makes These Plans Stand Out:
🔨 Multiple Foundation Options
Includes instructions for 5 types: wood skid, concrete slab, block pier, poured pier, and precast pier.
🧱 Durable Framing
Walls built like a real home: 2×4 studs 16” OC, double top plate, and 8’-1” high walls.

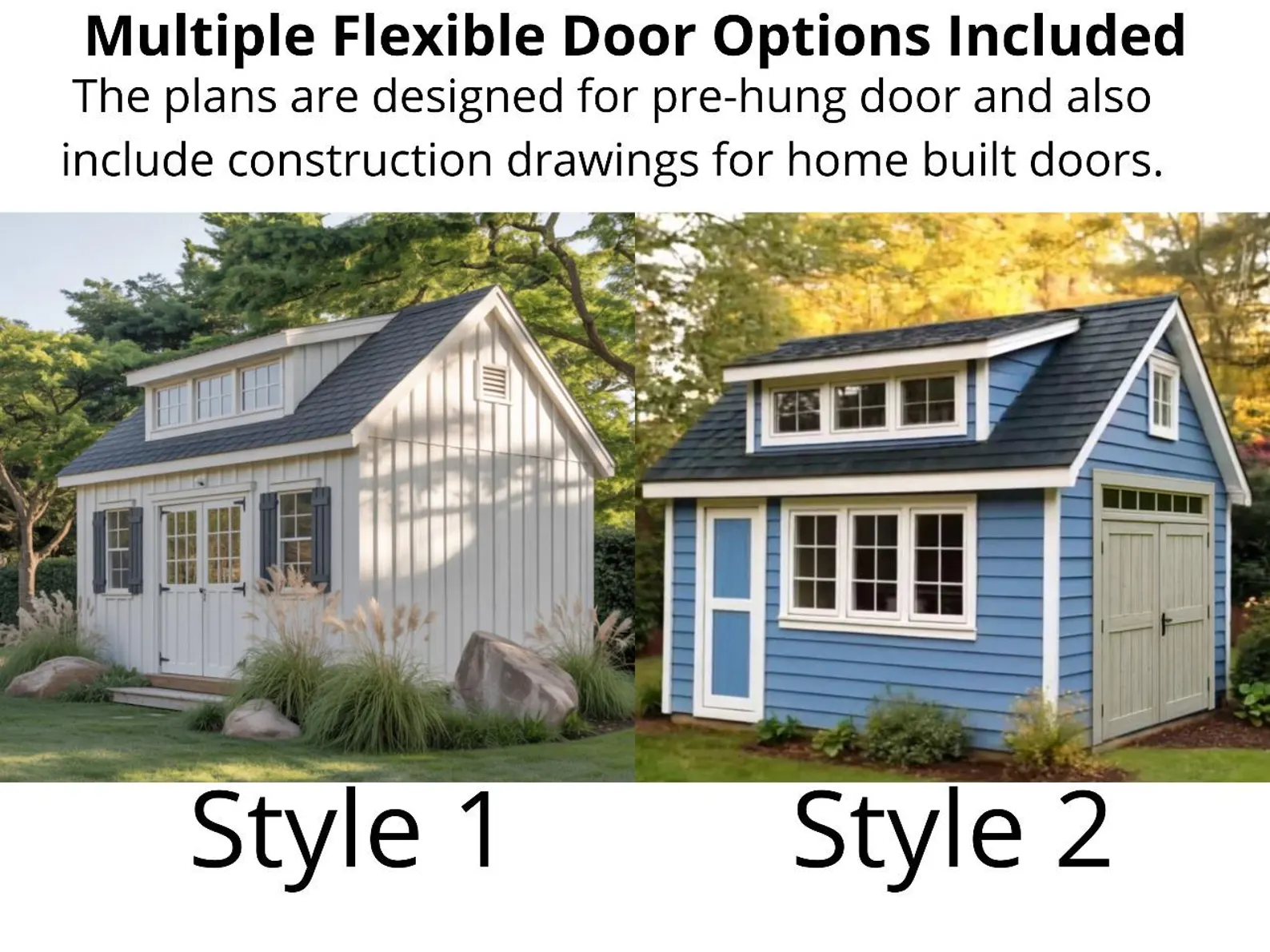

🚪 Two Door Options

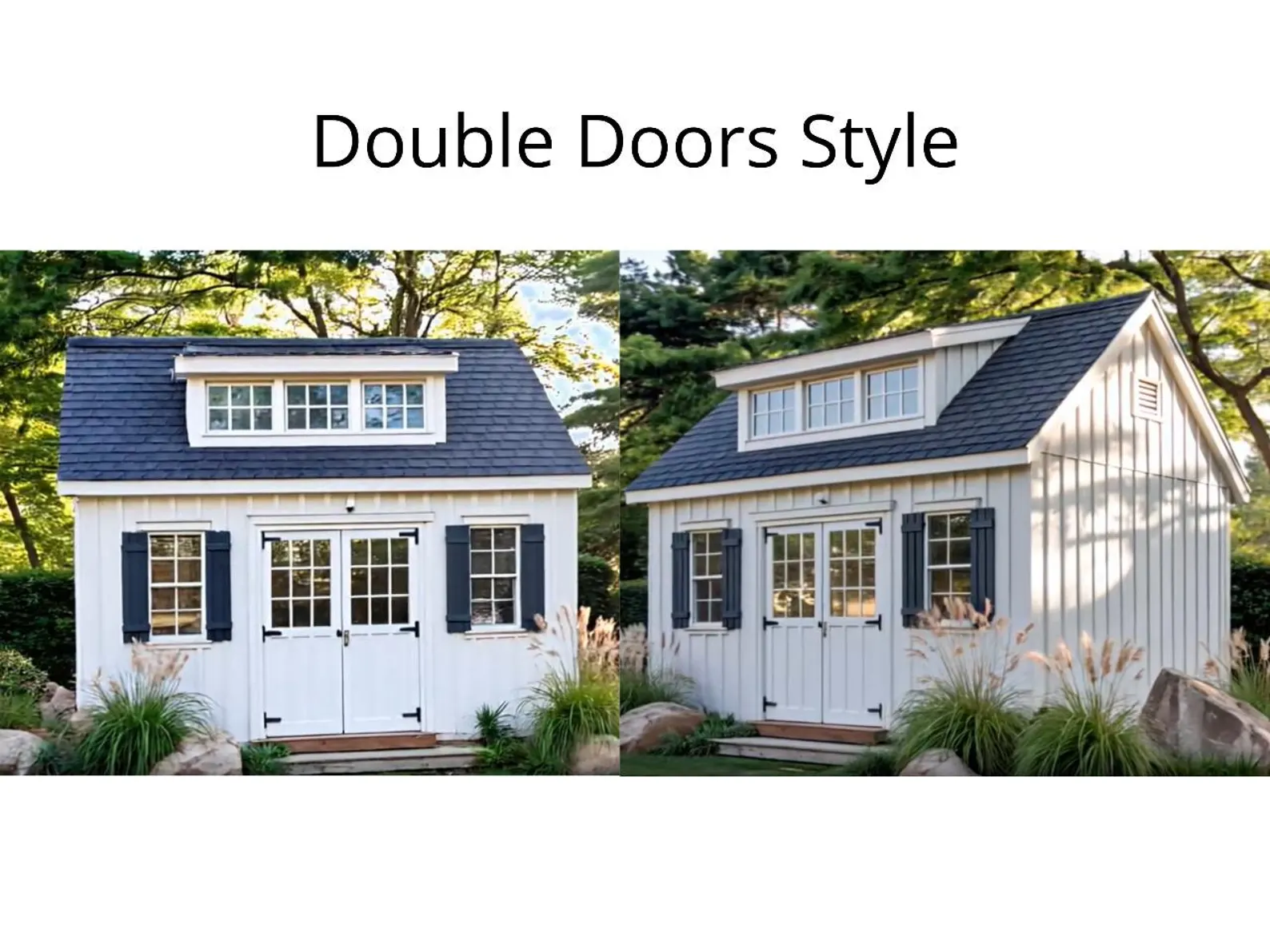

• Double End Door: 6’x6’-8”

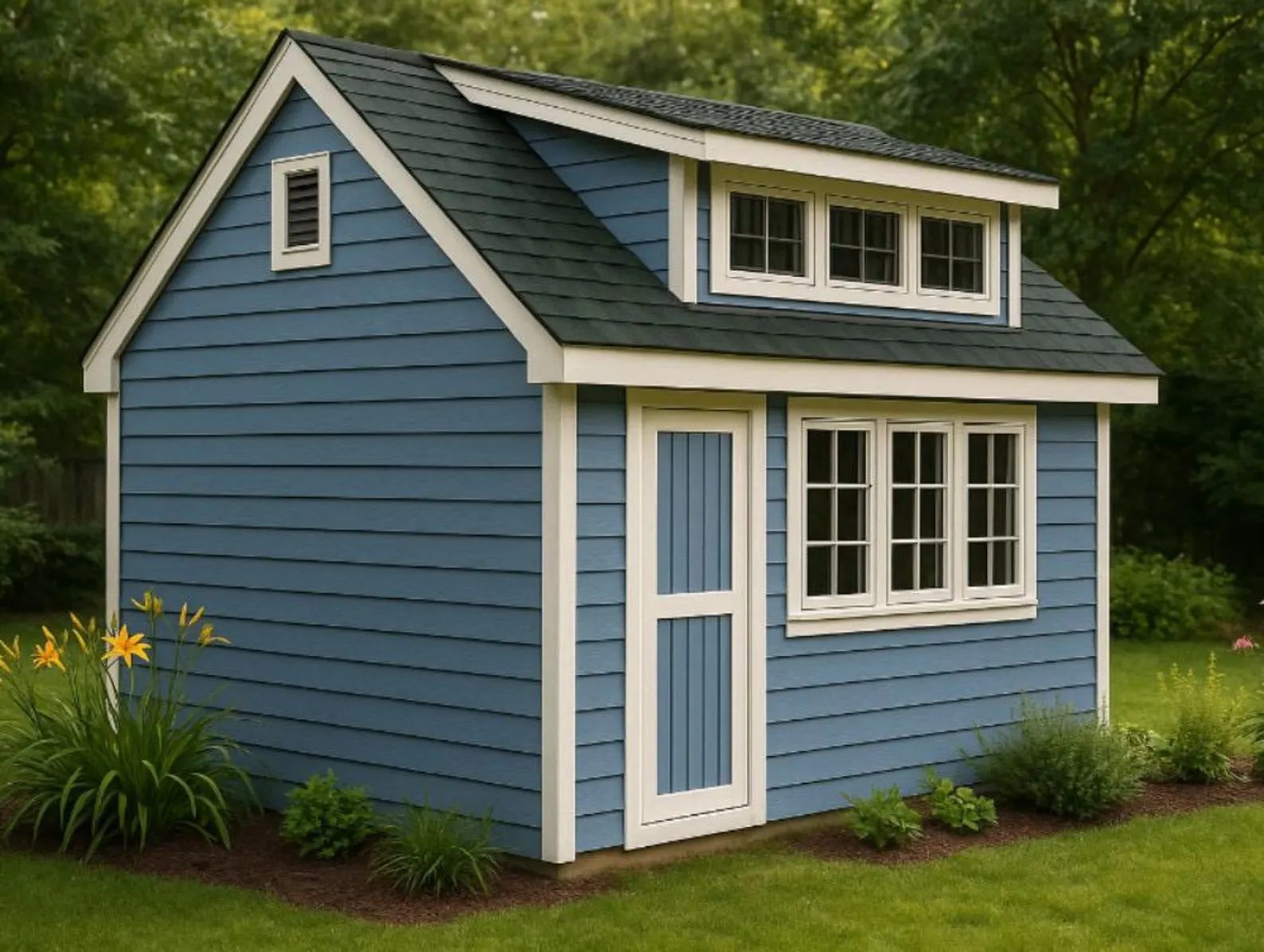

• Side Door: 2’-6”x6’-8”
🏠 Adaptable Exterior
Designed for T-111 siding, but works with vinyl or others.
🏗 Strong Roof Design
• Main pitch: 10/12, Dormer: 4/12
• 2×6 rafters with ridge board and ½” OSB sheathing
• Pre-cut angles for easy assembly
✅ Smart Details
• 10” roof overhangs for better protection
• Trim instructions for clean finish
• Floor load: 50 psf | Roof snow load: 40 psf

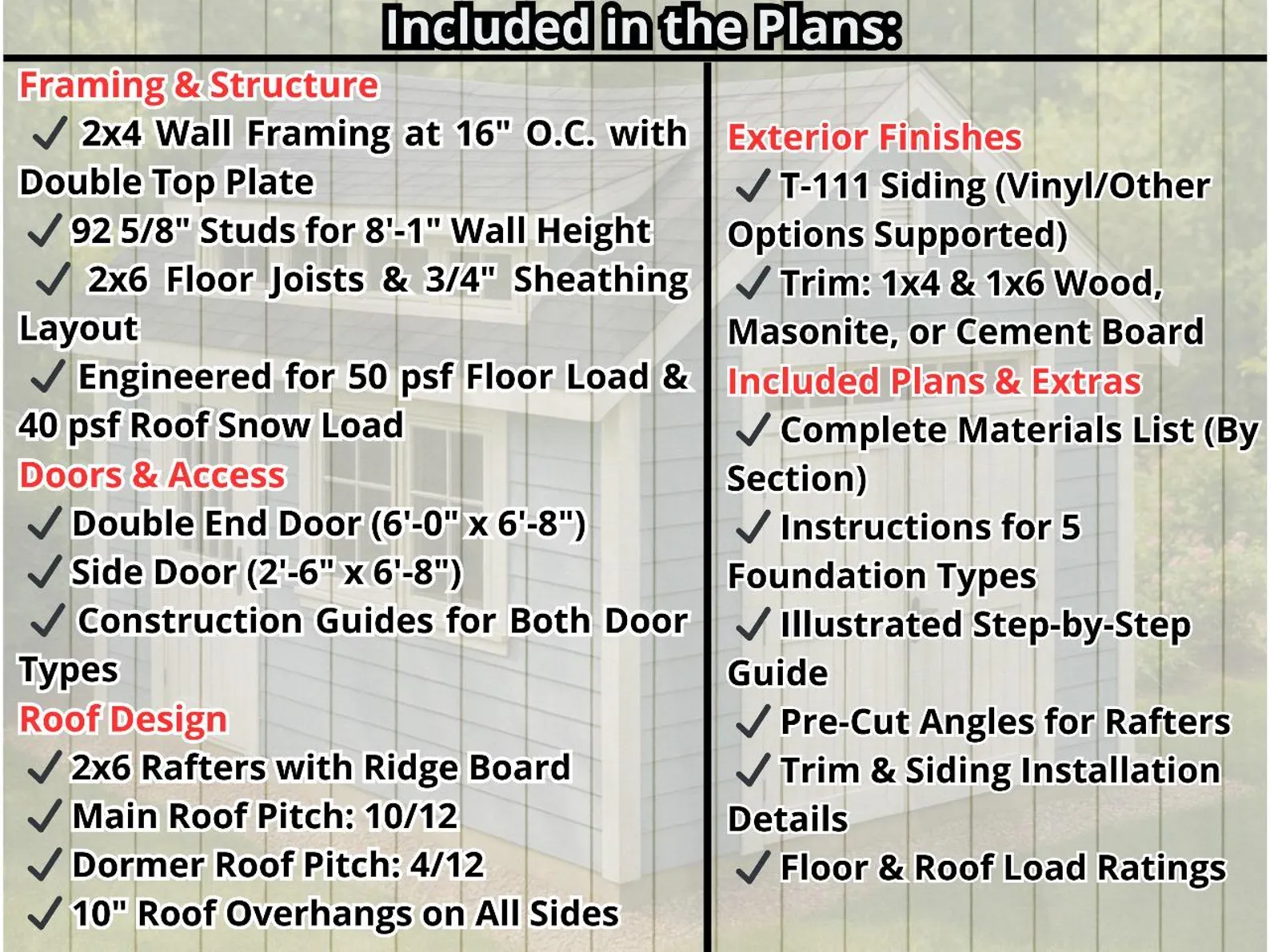

What’s Included:
✔ Full materials list

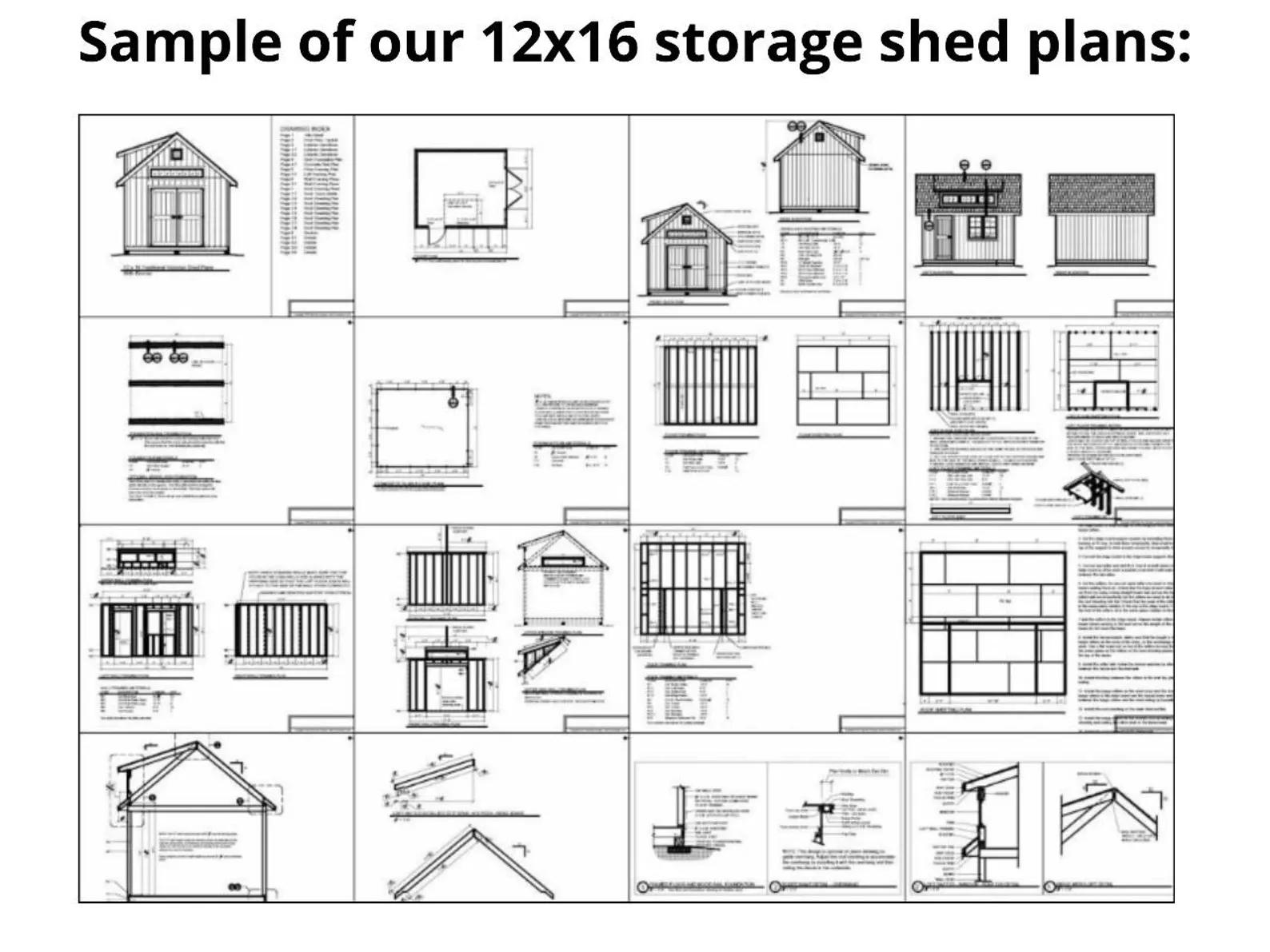

✔ Step-by-step illustrated instructions
✔ Guides for doors, framing, roofing & siding
✔ Load specs & trim details
